Power Supply¶

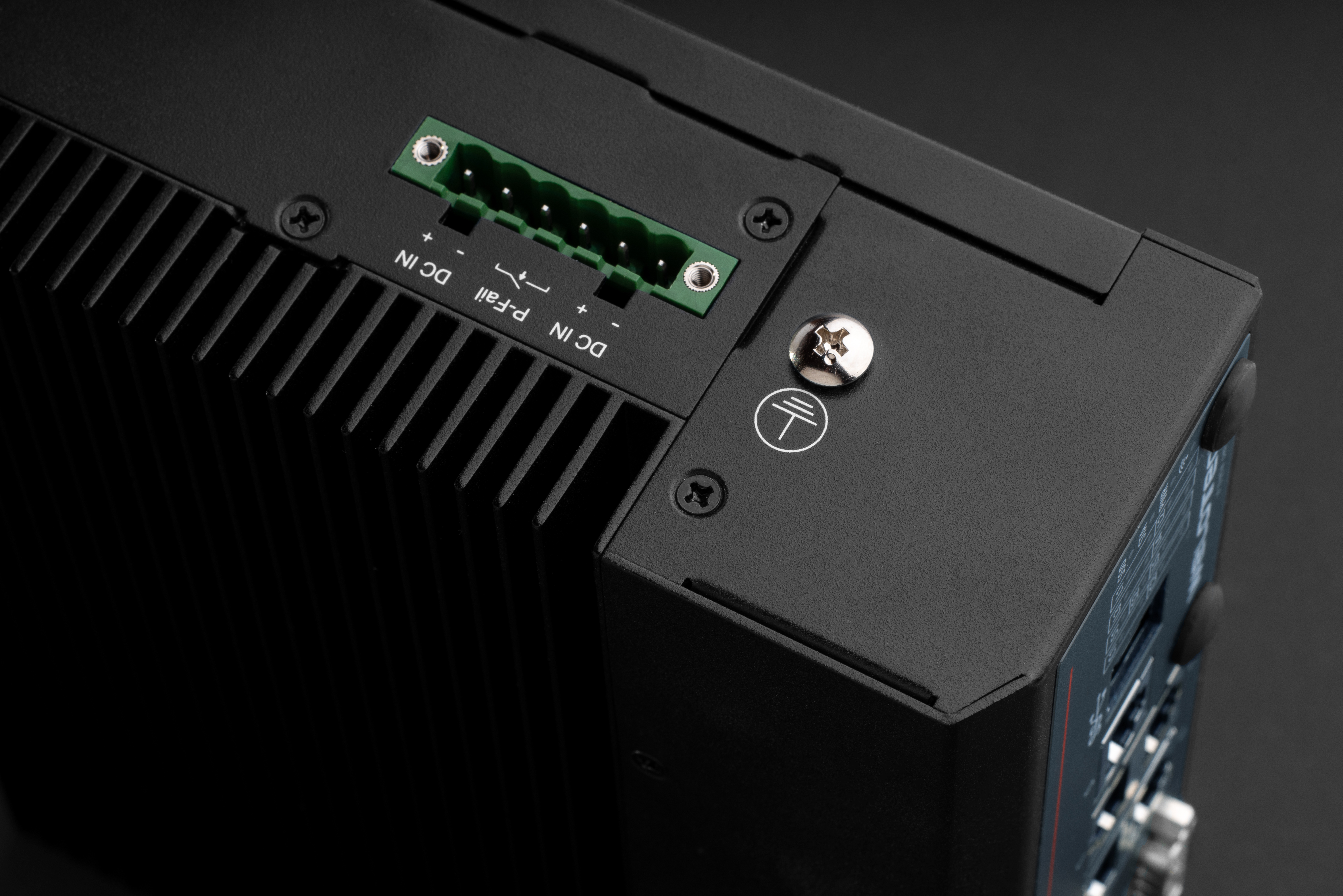

Use the terminal block to connect the RSAEC to a 20-54V DC power source.
Input Power Connector: Dual DC Input
Pin |
Function |
|---|---|
1 |
DC2+ |
2 |
DC2– |
3 |
ALARM1 |
4 |
ALARM2 |
5 |
DC1+ |
6 |
DC1– |
⚠️ Note: If either DC1 or DC2 fails, both ALARM1 and ALARM2 will short-circuit to signal the failure.
