DIP Switch Settings and Pin Definitions¶

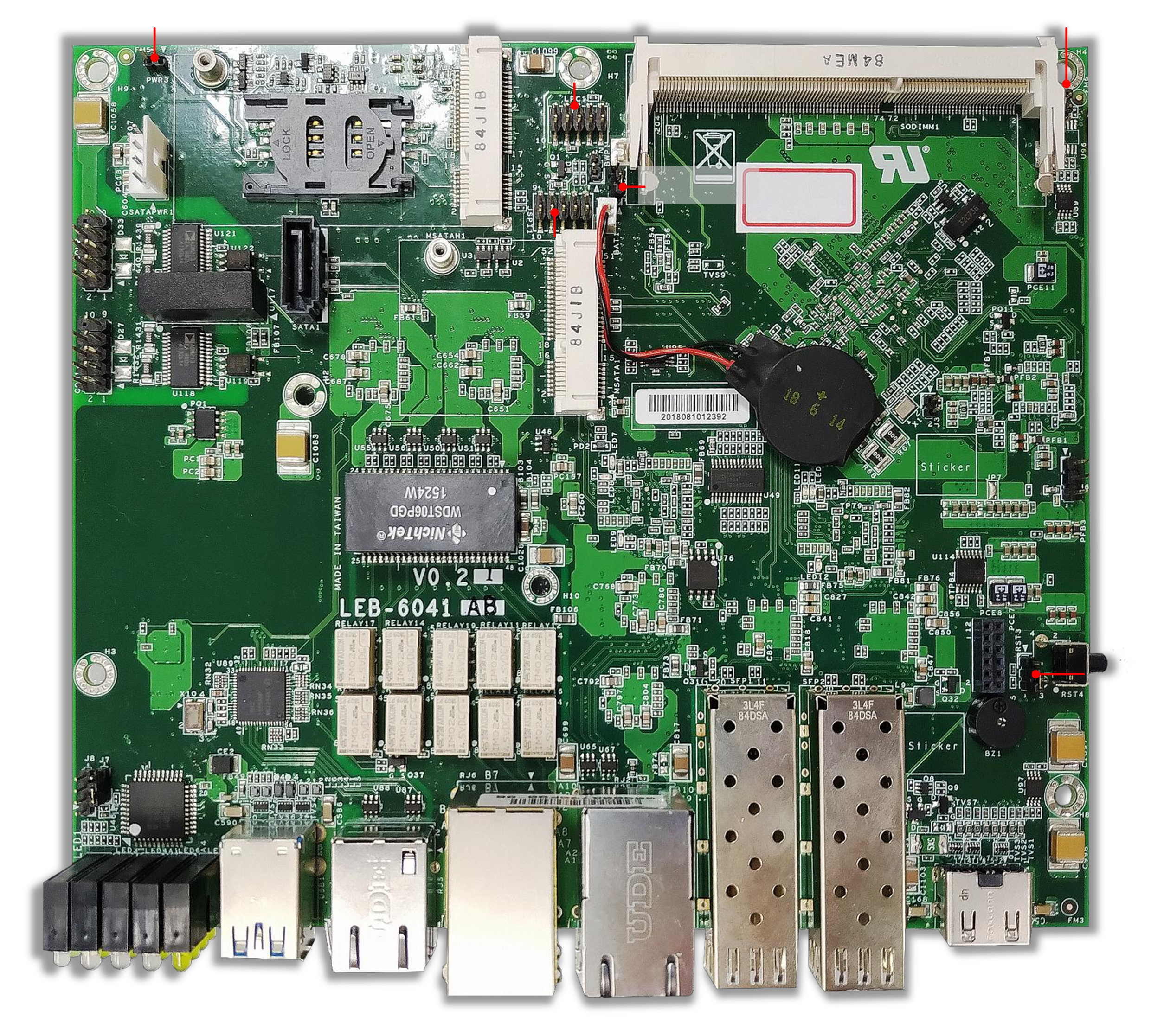

Motherboard Layout¶

Connector and jumper positions are shown below for reference.

Motherboard Layout

Jumper	Function
1–2	Power ON/OFF System
NC (Default)	Normal Operation

Jumper	Function
1–2	Software Reset
2–3 (Default)	Hardware Reset

Reset Selection Jumper

Jumper	Function
1–2 (Default)	Normal Operation
2–3	Clear CMOS

Clear CMOS Jumper

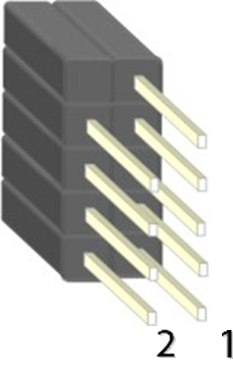

Port 1 Connector

Pin	Function	Pin	Function
1	NC	2	NC
3	COM1_R_RXD	4	NC
5	COM1_R_TXD	6	NC
7	NC	8	NC
9	COM1_2_GND

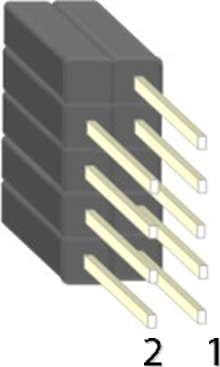

Port 2 Connector

Identical layout and functions as COM1.

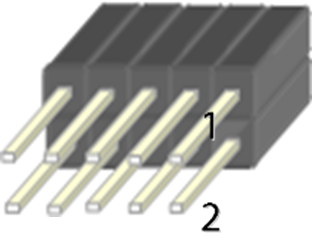

SPI ROM Connector

Pin	Function	Pin	Function
1	HOLD#	2	NC
3	CS#	4	+1.8V
5	MISO	6	NC
7	NC	8	CLK
9	GND	10	MOSI

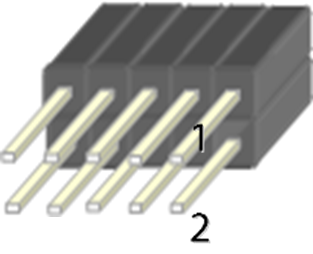

LPC Connector

Pin	Function	Pin	Function
1	CLK_24M_P80	2	L_AD1
3	PLTRST_P80_N	4	L_AD0
5	L_FRAME_N	6	P3V3S
7	L_AD3	8	GND
9	L_AD2	10	GND

SATAPWR1: SATA Power Connector

SATA1: SATA Data Connector
SATA Connector

Pin	Function	Pin	Function
1	GND	5	SATA_RXN1_C
2	SATA_TXP1_C	6	SATA_RXP1_C
3	SATA_TXN1_C	7	GND
4	GND

MSATA1: mSATA Connector

Pin	Function	Pin	Function
1	NC	2	V3P3_S
3	NC	4	GND
5	NC	6	NC
7	NC	8	NC
9	GND	10	NC
11	NC	12	NC
13	NC	14	NC
15	GND	16	NC
17	NC	18	GND
19	NC	20	NC
21	GND	22	NC
23	SATA_RXP0_C	24	V3P3_S
25	SATA_RXN0_C	26	GND
27	GND	28	NC
29	GND	30	NC
31	SATA_TXN0_C	32	NC
33	SATA_TXP0_C	34	GND
35	GND	36	NC
37	GND	38	NC
39	V3P3_S	40	GND
41	V3P3_S	42	NC
43	GND	44	NC
45	NC	46	NC
47	NC	48	NC
49	NC	50	GND
51	NC	52	V3P3_S

MPCIE Connector

Pin	Function	Pin	Function
1	WAKE#	2	V3P3_S
3	NC	4	GND
5	NC	6	V1P5_S
7	CLKREQ#	8	UIM_PWR
9	GND	10	UIM_DATA
11	CLK_MPCIE_DN	12	UIM_CLK
13	CLK_MPCIE_DP	14	UIM_RESET
15	GND	16	NC
17	NC	18	GND
19	NC	20	W_DISABLE#
21	GND	22	PERST#
23	MPCIE_RXN	24	V3P3_S
25	MPCIE_RXP	26	GND
27	GND	28	V1P5_S
29	GND	30	NC
31	MPCIE_TXN	32	NC
33	MPCIE_TXP	34	GND
35	GND	36	USB2_DN4
37	GND	38	USB2_DP4
39	V3P3_S	40	GND
41	V3P3_S	42	LED_WWAN#
43	GND	44	LED_WLAN#
45	NC	46	NC
47	NC	48	V1P5_S
49	NC	50	GND
51	NC	52	V3P3_S

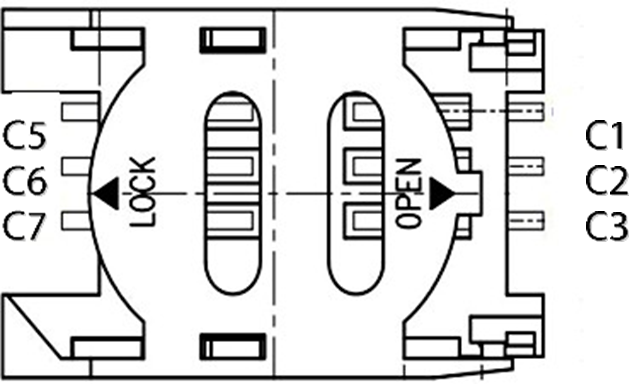

SIM Card Socket
